Description

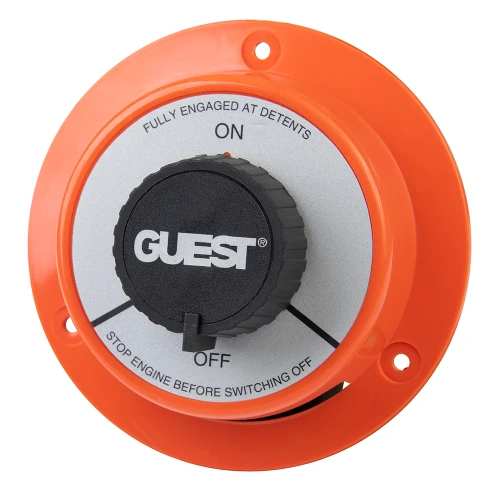

The Guest 2112A Battery On/Off Switch is a heavy-duty, manual turn-style switch designed for dependable vehicle or marine circuit control where an Alternator Field Disconnect (AFD) is not required. Built by Guest / Marinco, this active model features an extended stud length universal mount that simplifies heavy cable routing and assembly in custom panel configurations.
Key Features & Construction
- Universal Mounting: Engineered with longer terminal studs to improve structural assembly and ease the strain of thick cable routing. It utilizes a 4-hole layout with 1/4-inch diameter mounting points.
- Heavy-Duty Contacts: Equipped with copper sweep contacts providing highly positive circuit control and maximizing conductivity.
- Weatherproof Design: Rugged internal mechanisms are enclosed inside an impact-resistant, polycarbonate outer shell built to withstand elements like marine environments.
Technical Specifications
|
Specification |
Details |
|
Electrical Capacity |
6–32 Vdc |
|
Continuous Amperage |
230 Amps |
|
Momentary Amperage |
345 Amps |
|
Cable Lug Connection |
3/8-inch threaded terminal studs (2 studs) |
|
Dimensions |
5.0" x 2.75" (Enclosure profile) |
