Description

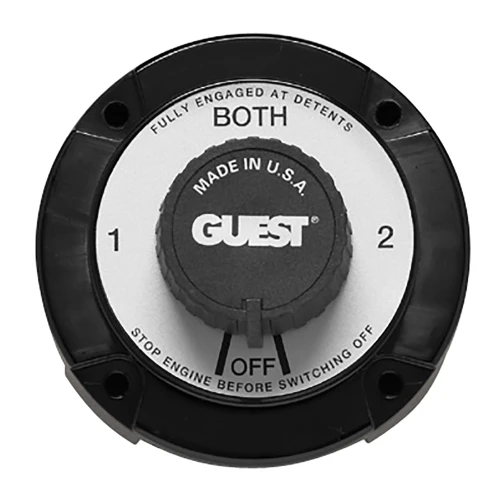

The Guest 2110A Battery Selector Switch is a heavy-duty, marine-grade manual switch designed to let you safely manage two separate batteries or battery banks with four positions: Off, 1, 2, and Both. It is engineered with Alternator Field Disconnect (AFD), which protects your alternator's voltage regulator from expensive damage if the switch is accidentally turned to "Off" while the engine is running.
Specifications
- Electrical Capacity: Handles 230 Amps continuously and 345 Amps momentary (up to five minutes).
- Voltage Compatibility: Supports 6, 12, 24, or 36 Volt DC marine electrical systems.
- Dimensions: Measures 5 inches in diameter by 2.75 inches in height.
- Cable Connections: Features a 3/8-inch cable lug size with longer stud lengths for easier cable routing.
Features
- Make-Before-Break Contact Design: This allows you to safely switch back and forth between battery "1", "2", or "Both" while the engine is running without interrupting the power flow or losing your charge path.
- Exclusive Sweep Contacts: Built with flat, 360-degree copper sweep contacts that provide up to 60% more contact area than standard designs, optimizing electrical reliability and minimizing resistance.
- Flexible Mounting: The impact-resistant polycarbonate case can be installed via surface or rear-panel mounting. Its hole configuration is designed as an easy retrofit to seamlessly replace older marine switch patterns.
- Built-in Protection: Outfitted with an integrated protective skirt to safeguard wire connections from moisture and debris. It conforms to Coast Guard standards for ignition protection.
