Description

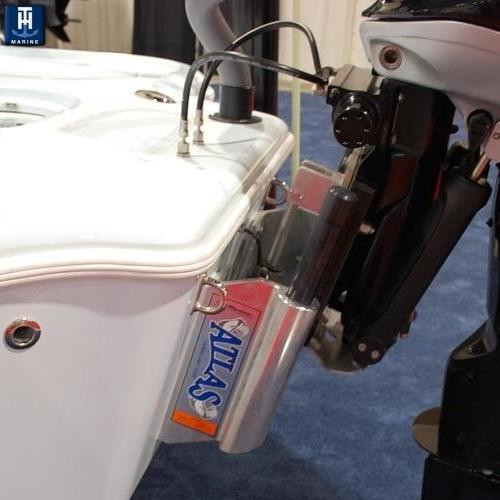

T-H Marine ATLAS™ 14" Set Back Hydraulic Jack Plate is a top-tier boat outfitting accessory engineered to maximize performance, efficiency, and shallow-water navigation for high-performance outboards. Known as a global leader in marine hydraulic systems, it stands out by using a completely self-contained design that houses all hydraulics inside the jack itself. This removes the hassle of running hydraulic hoses or installing bulky pumps and reservoirs inside your boat's transom.
Performance Specifications
- Engine Capacity: Handles the heaviest outboards up to 300 HP or 625 lbs dry weight. (Note: A "Heavy Duty" version is also available for engines up to 400 HP).
- Lifting Speed: Moves smoothly from bottom to top in less than 8 seconds.
- Travel Distance: Provides a 5.75-inch hydraulic rise with a total adjustable rise range reaching up to 9.75 inches.
- Dimensions: Measures 16 3/8 inches wide by 12 1/2 inches tall on the transom side.
Features
- No Grease Lubrication: Built with high-tech engineered polymer rods that are six times more abrasion-resistant than steel. They are completely self-lubricating, meaning you never have to apply regular grease.
- Shallow Water Anchor Ready: It was the first plate on the market factory-predrilled to seamlessly accept shallow water anchors (like Talons or Power-Poles) without drilling into your boat.
- Simplified Installation: Cuts setup time in half compared to conventional jack plates since it requires no separate hydraulic plumbing.
- Field-Serviceable: Features an easy two-pin pump removal system so you can service or replace the actuator quickly right on the water if needed.
