Description

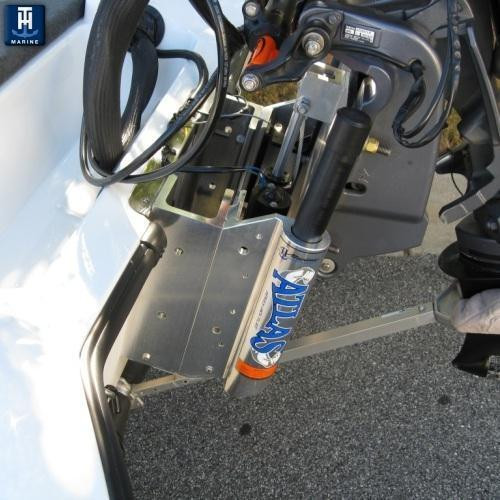

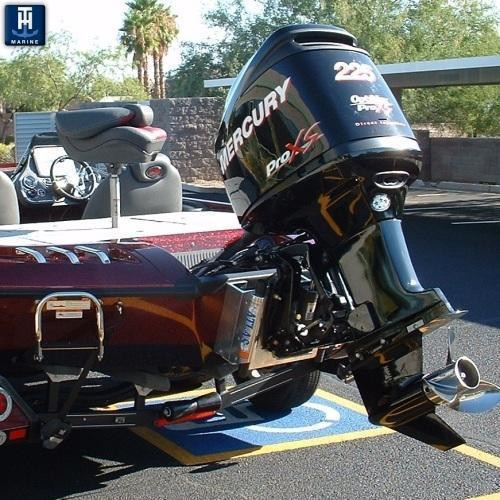

T-H Marine ATLAS™ 12" Set Back Hydraulic Jack Plate is one of the top-selling hydraulic jack plates in the marine industry. It features a self-contained hydraulic system with the pump and actuator built directly into the plate, eliminating the need to route fluid lines or mount a separate reservoir inside your boat transom.
Key Technical Specifications
- Setback: 12 inches
- Hydraulic Lift: 5.75 inches of fast vertical travel, moving from bottom to top in under 8 seconds.
- Dimensions: 16 ⅜" Wide x 12 ½" Tall on the transom side.
- Engine Capacity:
- Standard Model: Rated for outboards up to 300 HP or 625 lbs dry weight.
- Heavy Duty (HD) Model: Upgraded variant rated for larger outboards up to 400 HP or 450 HP depending on the specific engine footprint.
Features
- No-Grease Lifting Design: Utilizes high-tech engineered polymer rod and slot lifting mechanisms that are highly abrasion-resistant and do not require regular grease lubrication.
- Shallow Water Anchor Ready: The frame comes pre-drilled to easily accept bracket mounts for shallow water anchors like Power-Pole or Talon.
- Integrated Safety: Includes a heavy-duty safety cable to keep the engine from entering the cockpit in the event of an extreme structural failure.
- Warranty Support: Backed by a lifetime warranty on the frame and a 3-year warranty on the pump and actuator.
