  • Trident Marine Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - US Boating Marine Supplies

Trident Marine

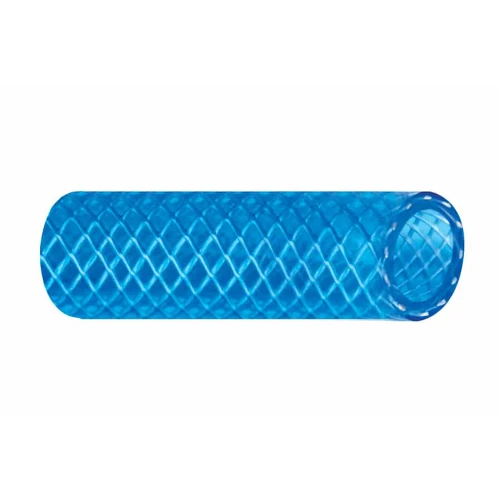

Trident Marine Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue

(No reviews yet) Write a Review
Regular Price $84.63 - $121.74
Your Price $59.99 - $79.99
SKU:
CWr-98801
Condition:
New
Availability:
Ships Within 24hrs
Weight:
7.10 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Description

The Trident Marine 165 Series Blue Cold Water Feed Line Hose is an FDA-grade, polyester-reinforced PVC hose specifically designed for potable drinking water lines, water feeds, drains, and vent lines on boats. Constructed with a 3-ply polyester weave, its non-toxic, odorless, and tasteless tube ensures safe drinking water while its translucent blue design allows for quick identification and easy monitoring of air locks or debris.

1/2" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe 5/8" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe 3/4" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe
  • Inner Diameter: (inch) 1/2" / (mm) 12.7
  • Outer Diameter: (inch) .777 / (mm) 19.6
  • Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17
  • Bend Radius: (inch) 0.98" / (mm) 25
  • Inner Diameter: (inch) 5/8" / (mm) 15.9
  • Outer Diameter: (inch) .866 / (mm) 22.5
  • Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
  • Bend Radius: (inch) 1.26" / (mm) 32
  • nner Diameter: (inch) 3/4" / (mm) 19
  • Outer Diameter: (inch) 1 / (mm) 25.4
  • Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
  • Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

Technical Specifications

  • Temperature Rating: -18°F to 149°F (-28°C to 65°C)
  • Safety Certifications: FDA food-grade, certified safe for potable drinking water
  • Structural Design: Extreme abrasion-resistant 3-ply polyester reinforcement
  • Application Note: Designed explicitly for pressurized cold-water feed systems; not recommended for use below the waterline.
