Description

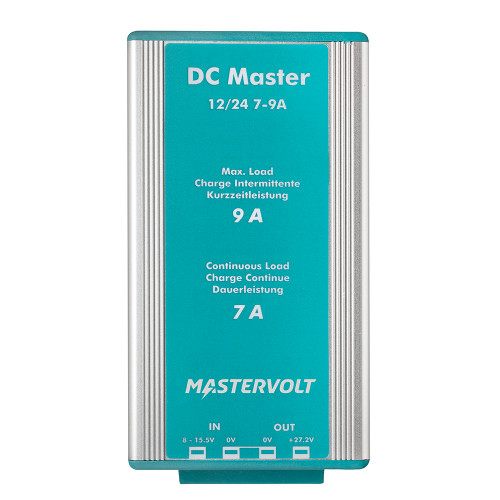

Mastervolt DC Master 12V to 24V Converter - 7A is a compact, non-isolated DC-to-DC converter designed to step up 12V marine or vehicle battery systems to a stable 24V output. It provides a reliable power supply for sensitive electronics, thruster motors, navigation systems, and autopilots that require a higher voltage threshold.
Key Specifications
- Continuous Output: 7A at 27.2V (191W continuous power)
- Peak Output: 9A for a maximum of 2 minutes
- Input Voltage Range: 10 to 15.5 V DC (16V maximum limit)
- Galvanic Isolation: No (Non-isolated models connect the input and output lines via a common ground)
- Dimensions: 6.6 x 3.4 x 2.0 inches (167 x 87 x 50 mm)
- Weight: 1.4 lbs (0.64 kg)
- Included Accessories: Mounting bracket, screws, and fasteners
