Description

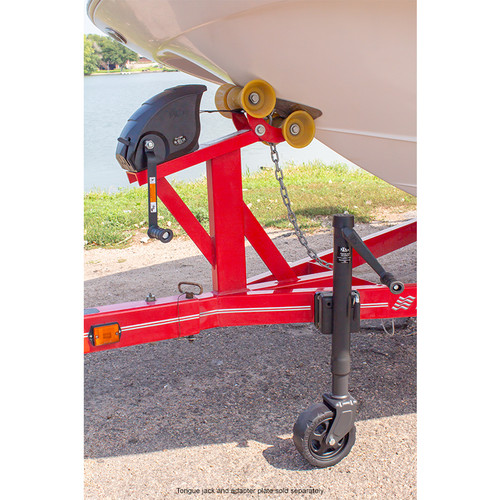

Dutton-Lainson Company pulling winches are best suited for boat trailer and other horizontal pulling applications which require the freewheeling features of ratchet type winches. Features include:
- Dlx1900FC Pulling Winch - Full Cover 20 ft Strap-Laminated, high carbon steel gears for longer life
- All gears in models DLx1200 through DL3500B are heat treated for increased strength
- Permanently lubricated bearings on drive shafts are maintenance-free
- Heavy duty steel handles with ergonomic molded grips
- Drive shaft gears are copper brazed for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All plated parts are zinc plated TUFFPLATE® finish
- Slotted mounting holes for easy installation
- All models except DL400 have heavy gauge embossed and reinforced steel bases for extra strength
- Ratcheting handle is available for models DL1602A, DL1802A, and DLx1900 when cranking space is limited
- Winches freewheel when the ratchet pawl is disengaged
- Available in powder coated copper bronze or zinc plated TUFFPLATE® finish
D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.
- Dutton-Lainson® hand/manual/pulling/ratchet winch for horizontal pulling applications
- 1,900 lb. capacity
- 9-1/2" offset handle with ergonomic handle grip
- Freewheel operation for easy line removal
- Powder coated matte black finish on base, zinc plated TUFFPLATE® finish on reel and hardware
- Reversible ratchet allows cranking of cable or strap onto winch drum in either direction
- 20' of 2" wide heavy duty polyester strap and snap hook
- U.S. patents 10640343, D867713, and D867714
- Made in the U.S.A.
NOTE: This winch is built for horizontal pulling applications. For vertical lifting applications, order a brake winch, a worm gear winch, or a StrongArm® electric winch without a clutch lever.
In addition to the standard D-L® pulling winch features listed above, DLx-FC pulling winches also offer this set of exclusive features:
- Base has charcoal gray textured powder coating over zinc plating
- Premium cushioned handle grip is softer and more comfortable
- Three-piece, high impact cover protects interior components, provides a more streamlined look, and features removable hinged top section
- Textured cover on ratchet pawl
- Unique black plated handle
Specifications:
| PART # | CAPACITY | DRUM HUB DIA. | GEAR RATIO | MAX. MECH. ADVANTAGE | MAX. DRUM CAP. CABLE | MAX. DRUM CAP. STRAP |
|---|---|---|---|---|---|---|
| DUT-DLX1500FC | 1,500 lbs. | 7/8" | 4.4:1 | 74 | 1/4" x 40' | 31' |
| DUT-DLX1900FC | 1,900 lbs. | 1-1/8" | 5.4:1 | 73 | 9/32" x 49' | 38' |
