Description

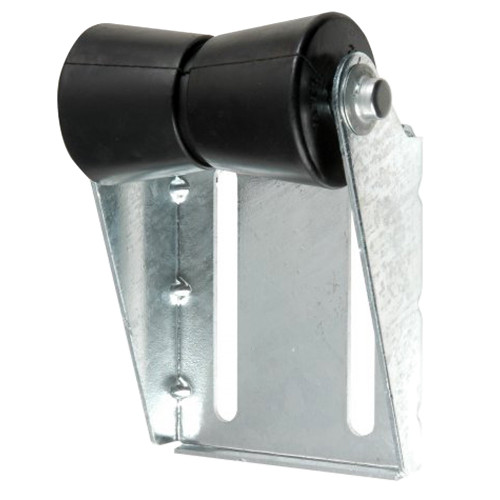

C.E. Smith Panel Bracket Assembly 12" Spool Roller - Black is a pre-assembled boat trailer component designed to support your boat's keel, ease the loading/unloading process, and absorb road shock during transit.
Features:
- Pre-Assembled: Ships fully put together with the bracket, 12" roller, and 5/8" inner shaft for faster DIY installation.
- Heavy-Duty Construction: Built from a single piece of 11-gauge hot-dipped galvanized steel with structural gussets to prevent bending under heavy loads.
- Vertical Adjustability: Features dual 17/32" x 5" vertical mounting slots to help precisely align the roller against your boat's hull.
- Mounting Pattern: The slotted mounting holes are spaced exactly 10 inches apart on center
- Hardware Required: Fits standard 7/16" or 1/2" mounting bolts, which must be purchased separately.
Technical Specifications:
|
Component |
Specification |
Details |
|
Part Number |
10405G |
UPC: 768296000790 |
|
Roller Size / Style |
12 inches |
Deep V-Keel / Spool style |
|
Roller Material |
Black Rubber |
Shock-absorbing marine-grade rubber |
|
Bracket Material |
Galvanized Steel |
Hot-dipped finish for maximum salt and freshwater corrosion resistance |
|
Shaft Diameter |
5/8 inch |
Includes retaining shaft caps |
|
Slot Dimensions |
17/32" x 5" |
Allows for up to 5 inches of vertical alignment adjustment |
|
Slot Center Spacing |
10 inches |
Center-to-center measurement for trailer frame bolting |
