Description
Anderson V844L Over 80 inch Wide Low Profile Combination Rear Light; RS with license light are universal low profile surface mount lights provides stop, turn and tail light functionality. The fully sealed construction is submersible, and the lens optics produce an evenly light. Exceeds all DOT rear lighting and reflex requirements for all trailers, including those 80" wide and over. Available with (AND-V844) or without (AND-V844L) a license light.
Features:
- Combination stop / turn / tail light, rear and side reflex, and side marker.
- Designed to directly replace 440-series incandescent lights.
- Exceeds all DOT rear lighting and reflex requirements for all trailers, including 80" wide and over.
- Low Profile Combination Rear Light
- M844-BT3 and M844L-BT3 have leads terminated with 0.180" bullet connectors.
- M844L roadside light includes license light.

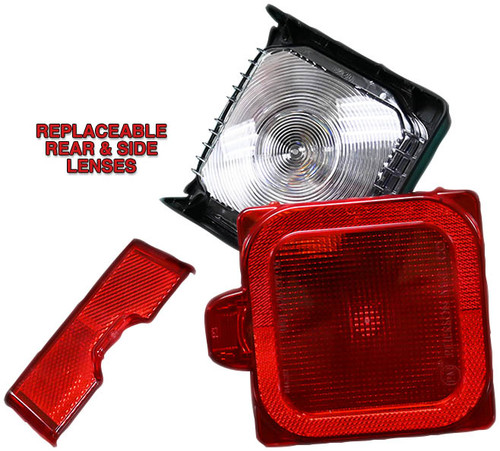

- Replacement lenses available.
- Sealed, submersible construction recommended for marine trailer use.
Specifications:
| Bulb Technology | LED |
| Lens Color | Red |
| Voltage | 12 Volts |
| W/ License Light | Yes |
| Shape | Square |
| Mounting Type | Stud |
| Light Color | Red |
| termination | Stripped Wire |
| Bulb/Diode Count | 7 |
| Regulatory Compliance | DOT |
| Container Type | Viz Pack |
| Integral Reflex | Yes |
| Multi-Volt | No |
| Height | 4.61 Inch |
| Length | 5.38 Inch |
| Mounting Centers | 2 Inch |
| Width | 1.8 Inch |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Submersible | Yes |
| Grote Interchange | 51992-5 |
| Bargman Interchange | 283008 |
| Bargman Interchange | 407555 |
