Description
Anderson 821C-7 Lumen X® PL3 Oval Back-Up Light features 7 diodes, a LumeX lens and circuitry and grommet mounting. It has an industry-standard PL3 socket integrated into the housing and the regulated design provides voltage protection and consistent light output over a wide voltage range. A single light meets FMVSS 108 requirements when properly mounted. Made in the USA.
Features:
- Oval Back-Up Light
- PL3 socket integrated into housing.
- Single light meets DOT requirements when properly mounted.
- Meets DOT requirements in any horizontal / vertical / 360 degree position.
- 821 kit includes light, grommet and 421-49 plug.
- 822 kit includes light and 421-49 plug.
- See matching stop / turn / tail light on page 5.
- See matching turn signal light on page 15.
Specifications:
| Voltage | 12 Volts |
| Lens Color | Clear |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Oval |
| Bulb/Diode Count | 7 |
| Mounting Type | Grommet |
| Light Color | White |
| termination | PL3 |
| Bulb Technology | LED |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |

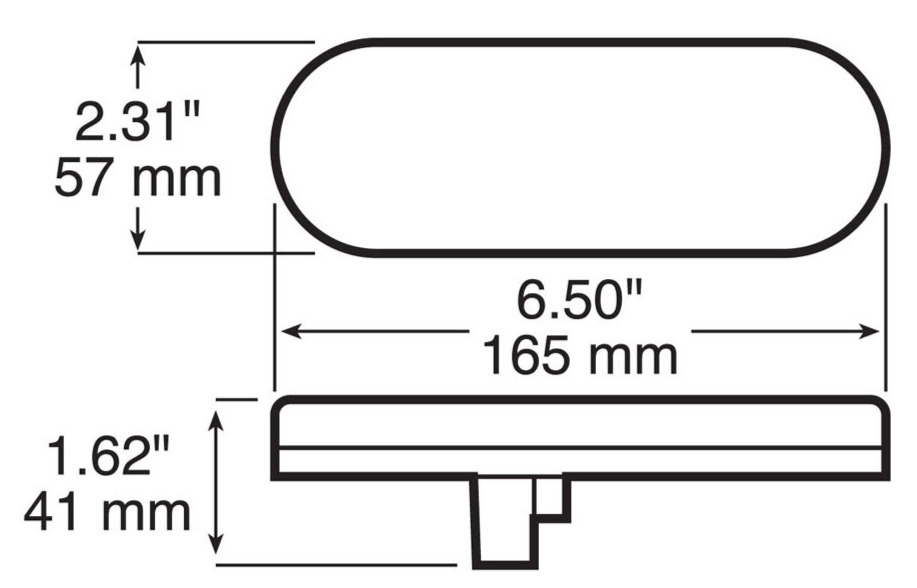

| Height | 2.31 Inch |
| Length | 6.5 Inch |
| Width | 1.62 Inch |
| Submersible | Yes |
| Truck-Lite Interchange | 6060C |
| Grote Interchange | 62751 |
| Bargman Interchange | 283565 |
Specifications
- California Residents:
- WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov
- Country Of Origin:
- Made In The USA
